Signal Sleuth v1.1 KIT

***THIS IS A PRE-ORDER I will order parts on Friday***

***THIS IS A KIT you will have to assemble yourself***

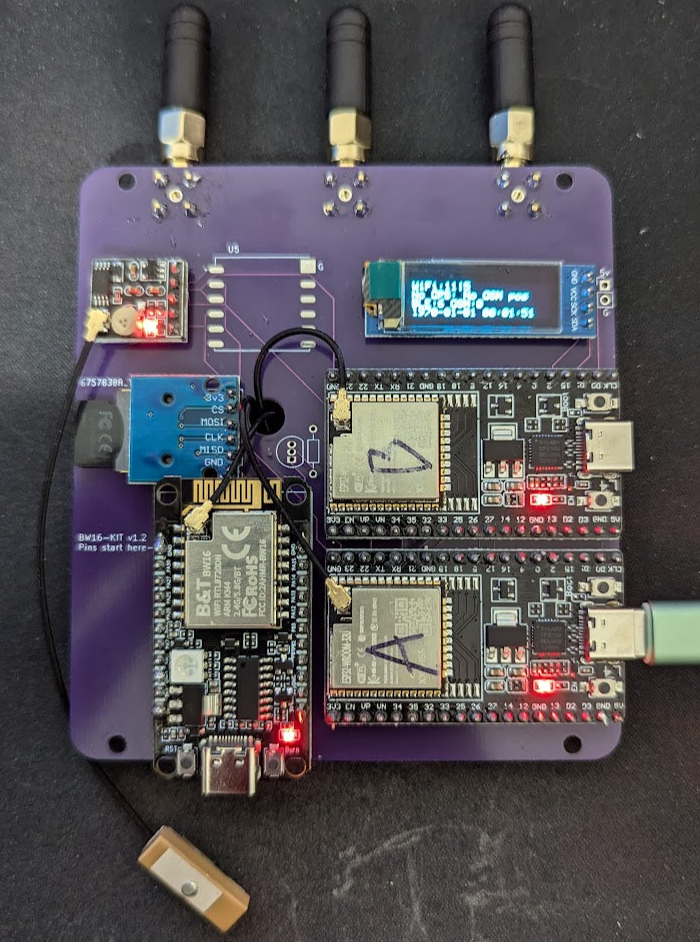

Actual kit will vary from the pictures

This is my revision of Joseph Hewitt's Wardriver with PCB mounted antennas and the BW16 5Ghz mod ready to go. This board was also designed around the battery board mentioned bellow. I will have a 3d printable case available before shipping. I will upload full instructions on building this before these will ship. Picture does not show all items included see bellow for contents.

The kit will include:

• x2 ESP32-DevKitC V4 with ESP32-WROOM-32U
• BW16-kit USB-C Purple PCB.
• ATGM336H GPS/GNSS module with antenna
• Mini Micro SD Card reader/writer SPI
• 0.91“128×32 i2c LCD 3.3v (optional, recommended)
• DS18B20 temperature sensor with 4.7k resistor (both optional)
• Plastic enclosure, at least 100x60x25mm* (3.94”x2.36“x0.98”)
• 3x IPEX → PCB mounted SMA
• 18650 4x battery shield
• some sort of spacer and screws
• 2 pin Male and female header pins.
• Antennas

You will need to provide:

• Micro SD card; 16GB or less recommended
• (Optional) 3d printed case

Case for the Signal Sleuth:

• Pintables: https://www.printables.com/model/966751-signal-sleuth-case
• Maker World: https://makerworld.com/en/models/576389#profileId-496976
