DIY Wardriver Kit

***Expect a 3 week lead time.***

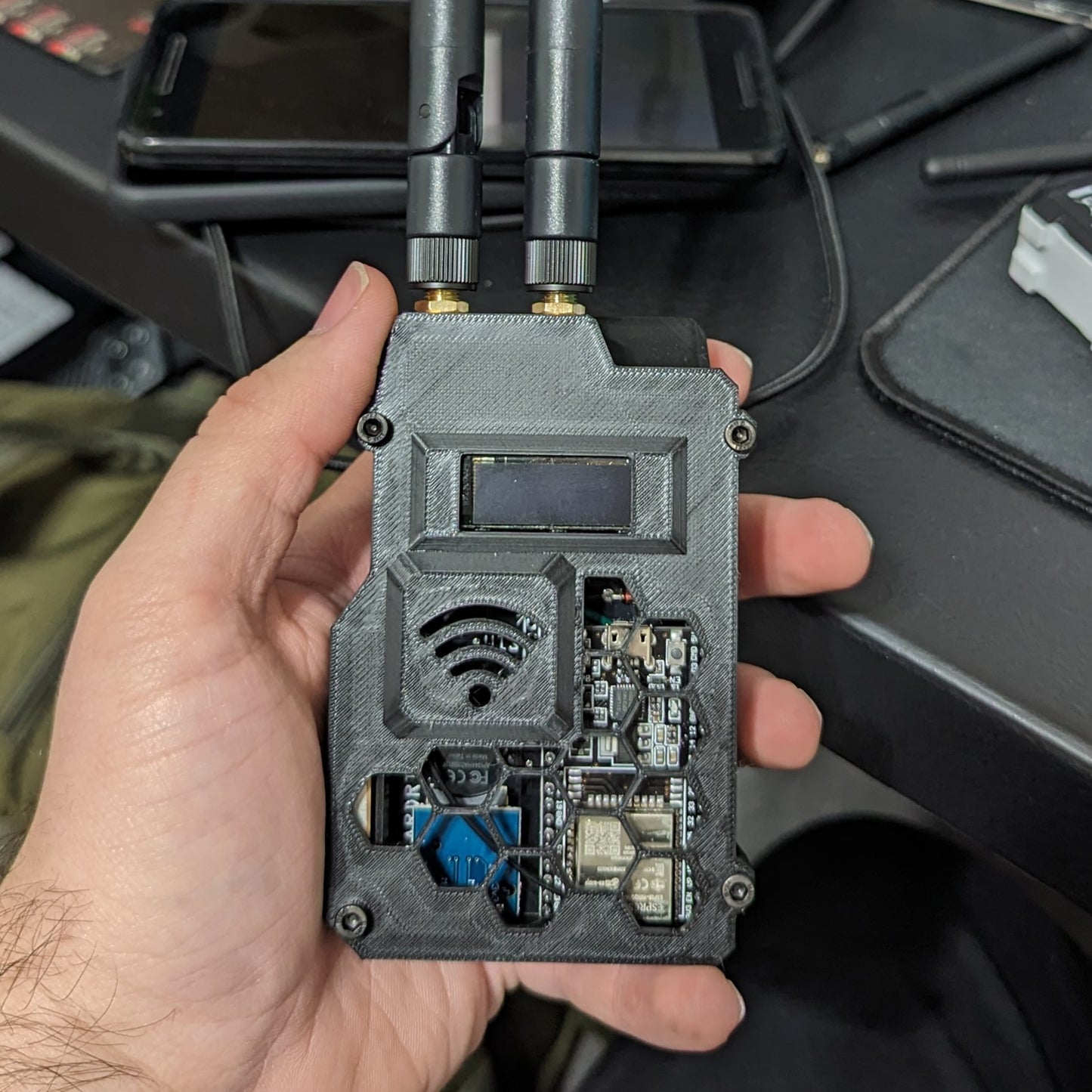

This kit contains everything needed to complete a wardriver by Joseph Hewitt: https://twitter.com/jhewitt_net

This kit will need to be soldered by you it does not come assembled.

The instructions for this kit can be found on: https://wardriver.uk/

Or you can view my video here: https://youtu.be/snlNfVZJ6Xw

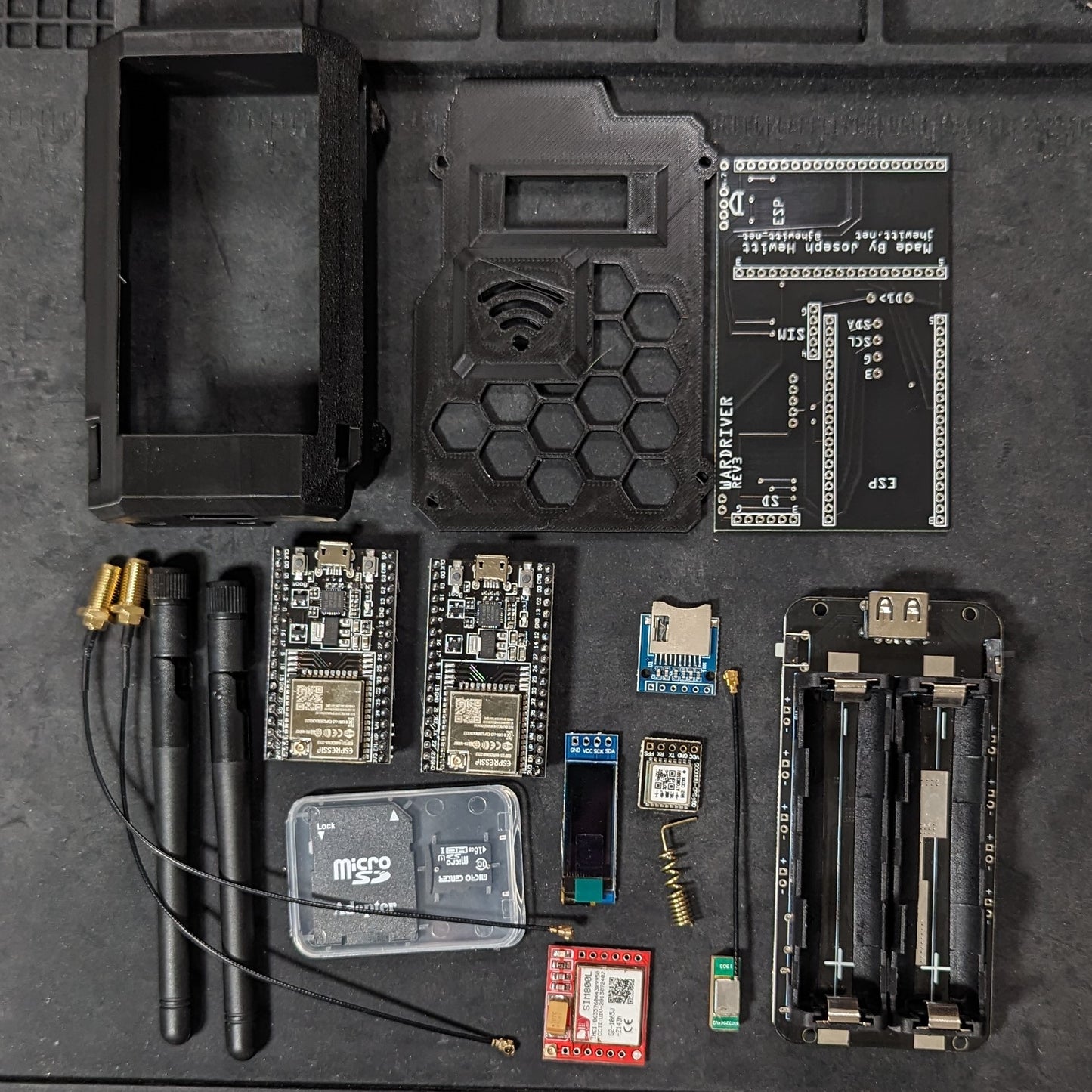

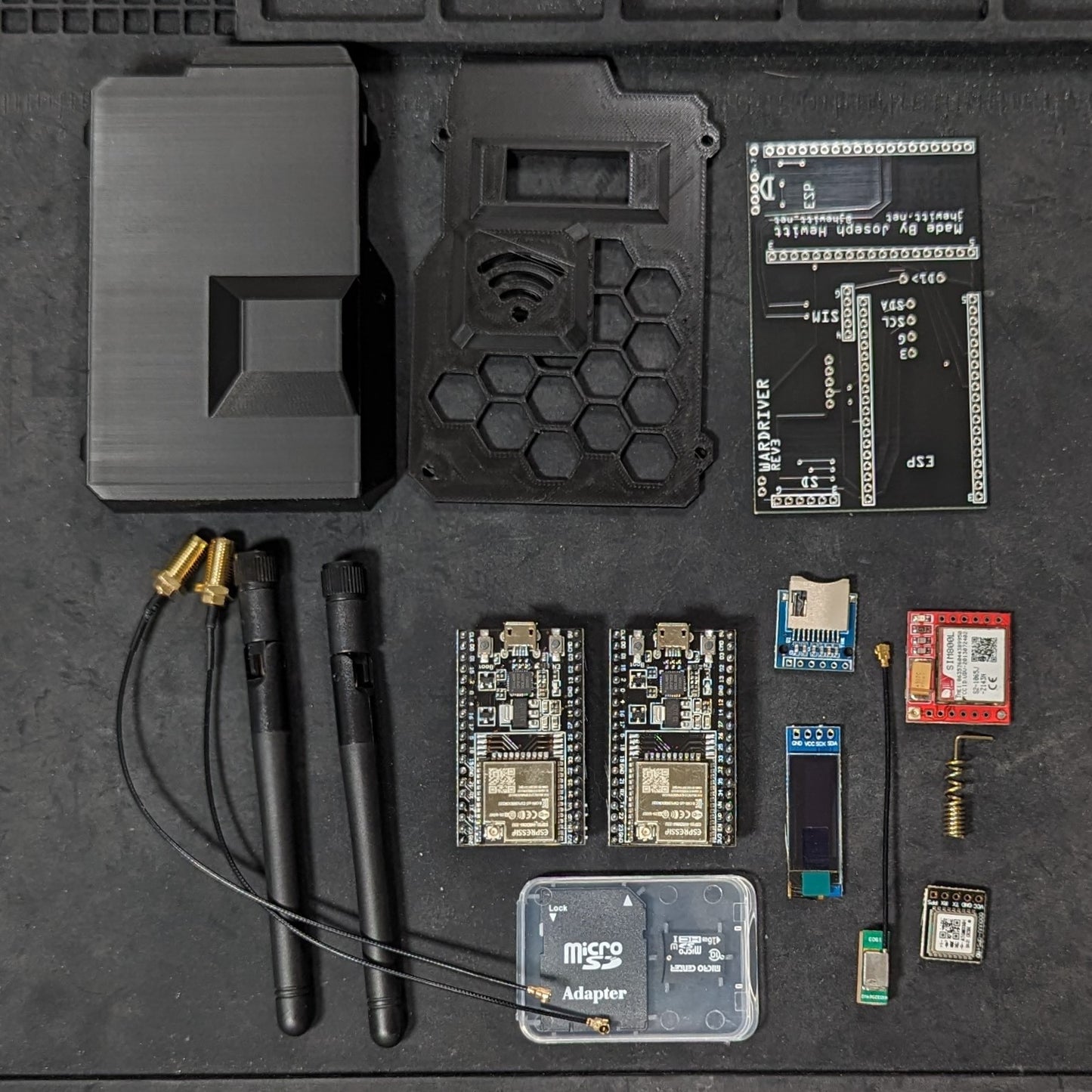

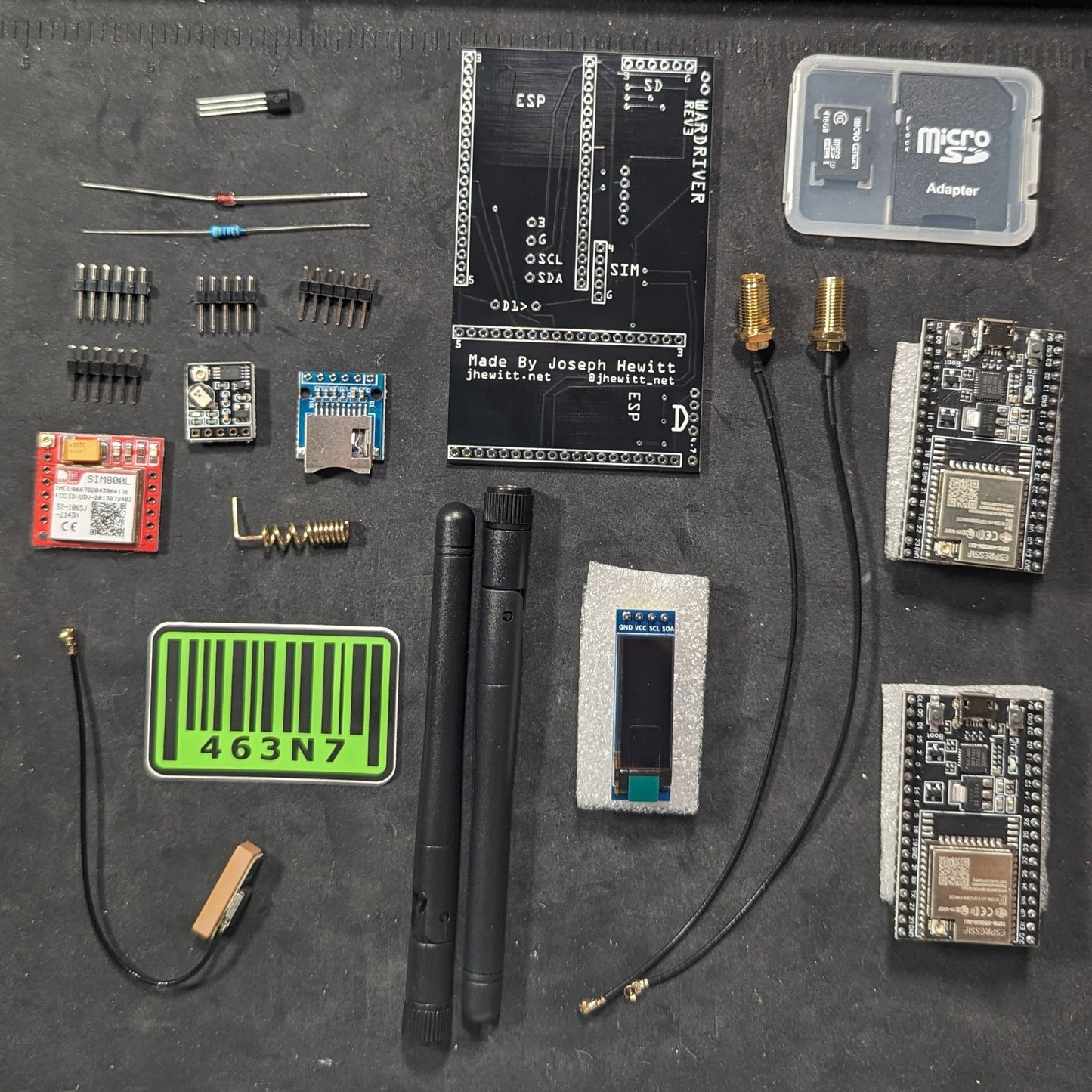

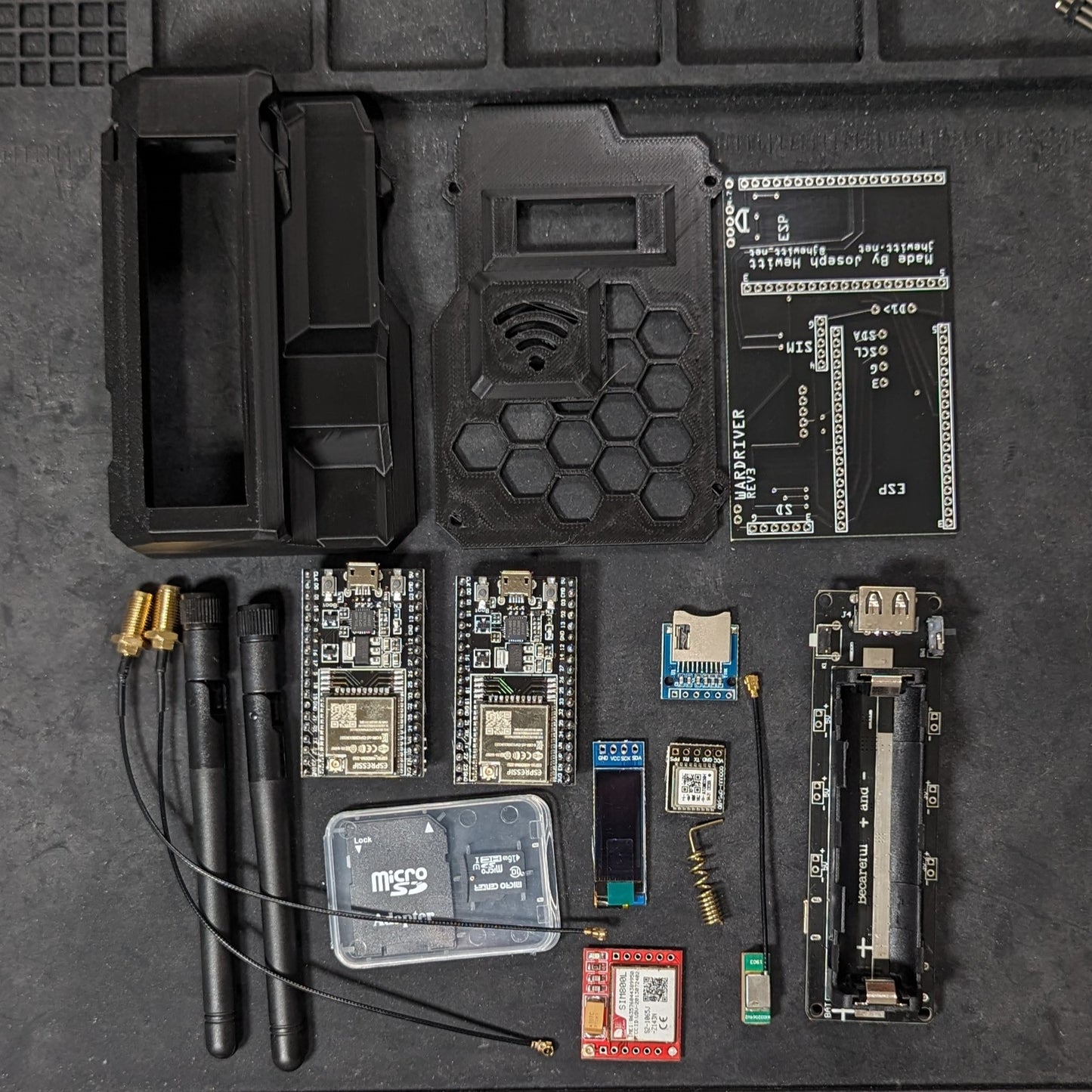

contents:

• 4 3Mx6 Hex socket head bolts
• 4 3mm Brass inserts (Installed)
• 1 3d Printed Case Black PLA (if selected)
• Micro SD card 16gb (may very from what is seen in the photo)
• 2x ESP32-WROOM-32U
• ATGM336H GPS/GNSS module with antenna
• Mini Micro SD Card Module
• SIM800L Module with spring antenna
• 85c zener diode 4.3v
• 0.91“128×32 i2c LCD
• DS18B20 temperature sensor
• 4.7k resistor
• Wardriver Rev3 PCB
• 2x IPEX → SMA (or RP-SMA) cables
• 2x 3dbi Antennas
• Battery Board (if selected)
